Trench Shoring Services
Critical safety systems preventing soil collapse during excavation work with hydraulically-operated slide rail protection
Understanding Trench Shoring
What is Trench Shoring?

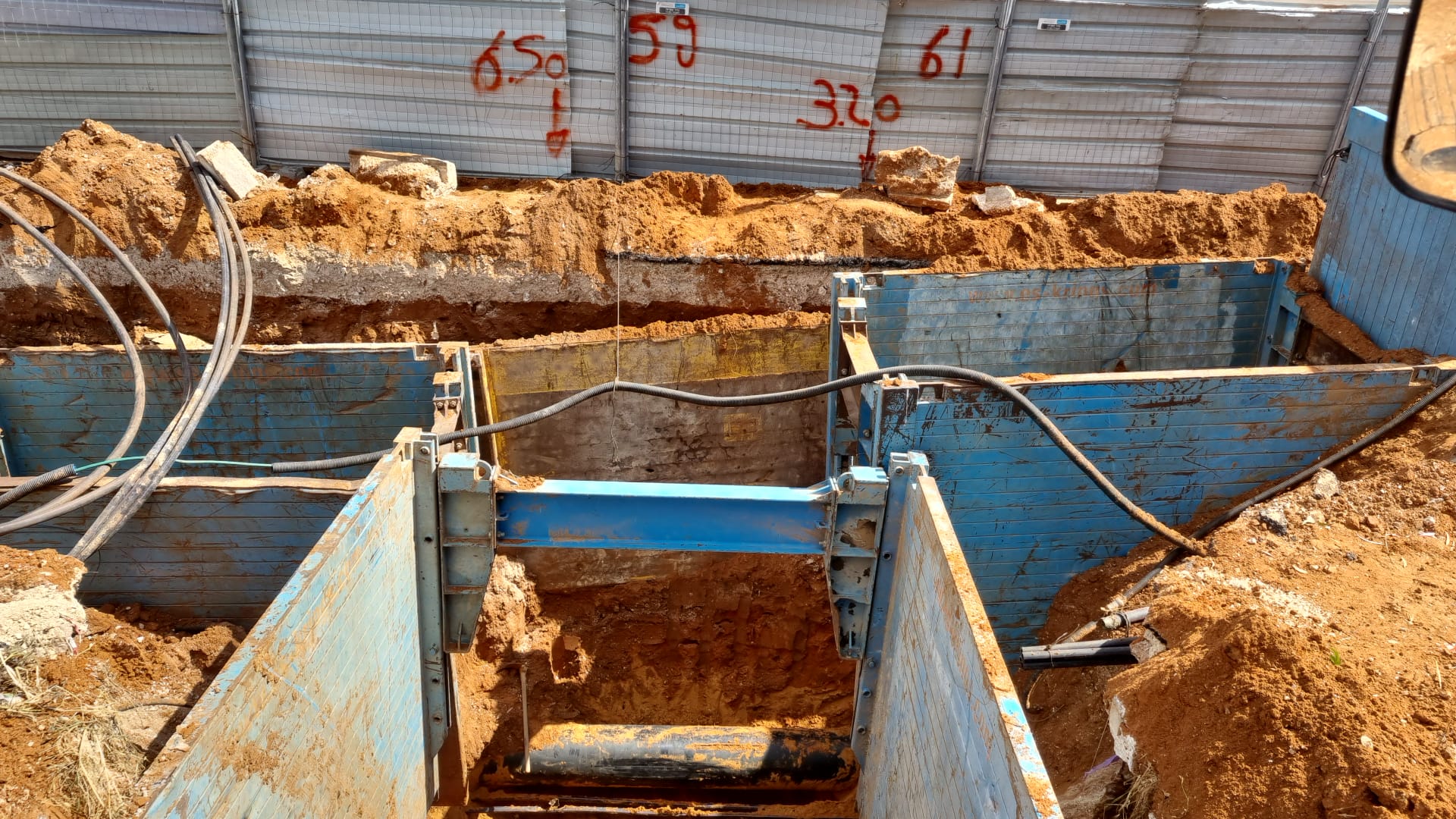

Trench shoring is a critical safety system designed to prevent soil collapse during excavation work. Our service provides temporary structural support for trench walls using hydraulically-operated slide rail systems that are installed progressively as excavation proceeds.
The system consists of vertical steel rails, horizontal shoring plates, and adjustable bracing extensions that create a protective barrier between workers and potentially unstable soil walls. We deploy parallel slide rail systems utilizing the "dig and push" methodology, where shoring components are progressively installed as excavation deepens, minimizing worker exposure.
Traditional Excavation Risks
Unprotected excavations create severe safety hazards:
- ✕Soil collapse risk - worker entrapment
- ✕Adjacent structure damage
- ✕Utility line exposure and damage
- ✕Extended project timelines due to safety concerns
- ✕High liability and insurance costs
Shoring System Advantages
Professional shoring provides comprehensive protection:
- Continuous worker protection during excavation
- GS-Certified safety standards compliance
- Progressive installation methodology
- Rapid installation vs. traditional methods
- Reduced insurance and liability exposure
When is Trench Shoring Required?
Regulatory Requirements
- • Excavations exceeding 1.25m depth in unstable soil
- • Soil analysis indicating collapse risk
- • Urban environments with adjacent structures
- • Areas with vehicular or pedestrian traffic
- • Compliance with DIN 4124 standards
Project-Specific Needs
- • Limited space preventing sloped excavations
- • Underground utility proximity
- • Time-critical project requirements
- • High groundwater table locations
- • Worker safety optimization
Typical Applications
- • Water/sewer line installations (2-6m)
- • Building foundation excavations
- • Underground storage tank work
- • Manhole/catch basin construction
- • Emergency repair operations
System Capabilities
Comprehensive depth and width configurations for all excavation requirements
Standard Systems
Single Rail Configuration
Maximum Depth:
3.80 meters
- Width Range: 0.45m - 3.30m
- Rail Thickness: 177mm
- Design Moment: 338 kNm
- Applications: Utility installations, shallow pipeline work
Heavy-Duty Systems
Double Rail Configuration
Maximum Depth:
7.50 meters
- Width Range: 0.73m - 4.24m
- Rail Thickness: 320-325mm
- Design Moment: 1020-1106 kNm
- Applications: Deep infrastructure, basement construction
Shoring Plate Configurations
Standard Thickness (100mm)
- • Lengths: 2.0m, 2.5m, 3.0m, 3.5m
- • Design loads: 56.6 - 171.6 kN/m²
- • Heights: 1.40m, 1.60m, 2.40m
- • Weight range: 335 - 805 kg
- • Ideal for: Standard excavations, cohesive soils
Heavy-Duty Plates (120mm)
- • Lengths: 4.0m, 4.5m, 5.0m
- • Design loads: 56.2 - 72.1 kN/m²
- • Heights: 1.40m, 1.60m, 2.40m
- • Weight range: 745 - 1635 kg
- • Ideal for: Deep excavations, high loads
Specialized Configurations
Corner Rail Systems
Creates rectangular/square pits for enclosed workspaces
- • Four-sided enclosed workspace protection
- • Available in single and double rail configurations
- • Ideal for manhole construction, pump stations
- • Depths up to 7.50m (double rail)
Strut-Free Systems
Eliminates internal bracing for unobstructed workspace
- • Complete kit weight: 220kg
- • Horizontal waler support transfers loads
- • Ideal for long pipe installations
- • Unrestricted access for equipment placement
Soil Type Compatibility
Cohesive Soils
- • Clay (soft to stiff)
- • Silty clay
- • Clayey silt
- Load capacity: Up to 171.6 kN/m²
Granular Soils
- • Sand (loose to dense)
- • Gravel
- • Sandy gravel mixtures
- Enhanced plate design for dynamic conditions
Mixed Conditions
- • Layered soil profiles
- • Fill materials
- • Disturbed ground
- Adaptable to varying properties
Groundwater Conditions
Progressive Installation Method
"Dig and Push" methodology ensuring continuous worker protection
Built-in Safety Features
Service Advantages

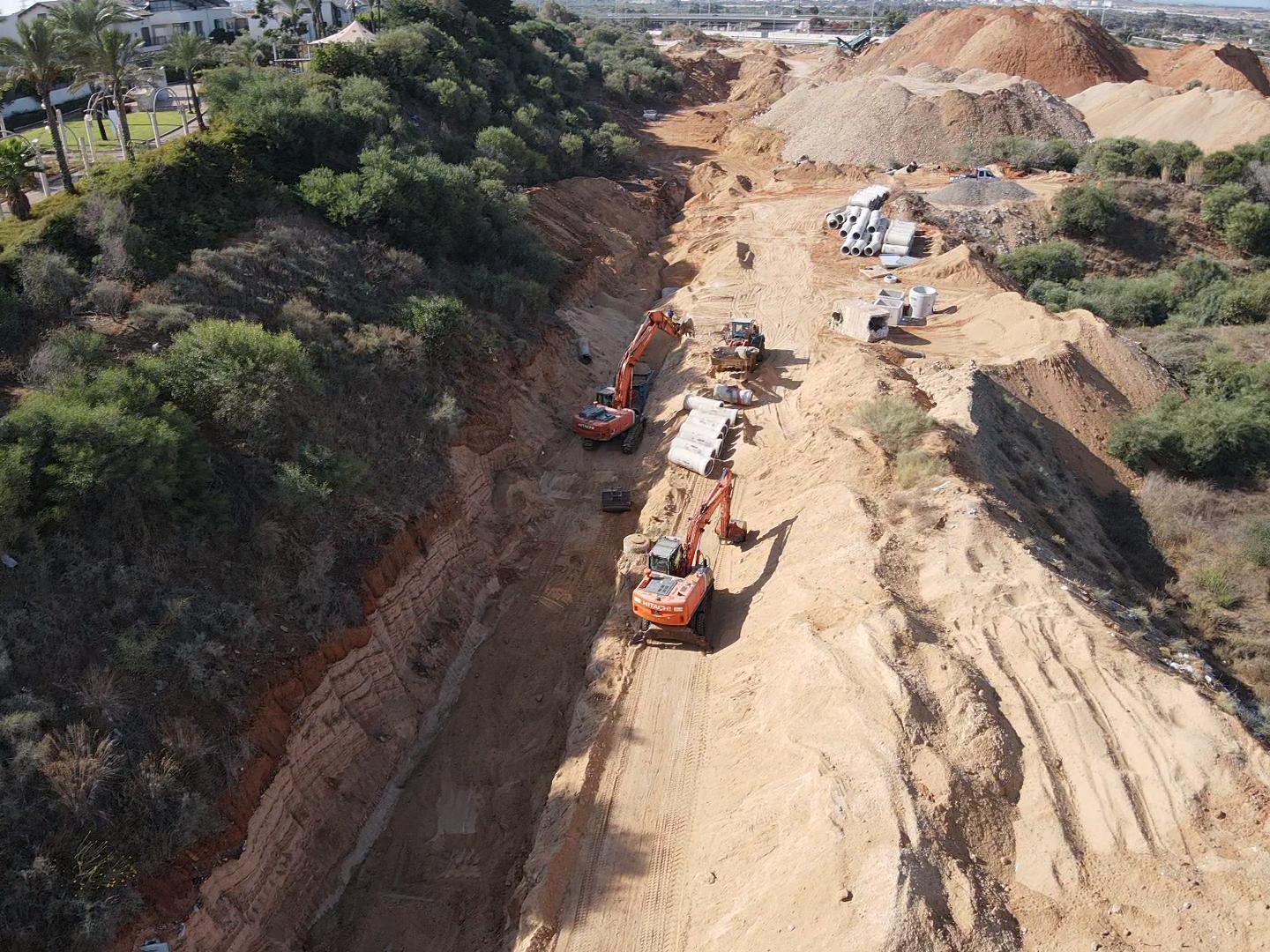

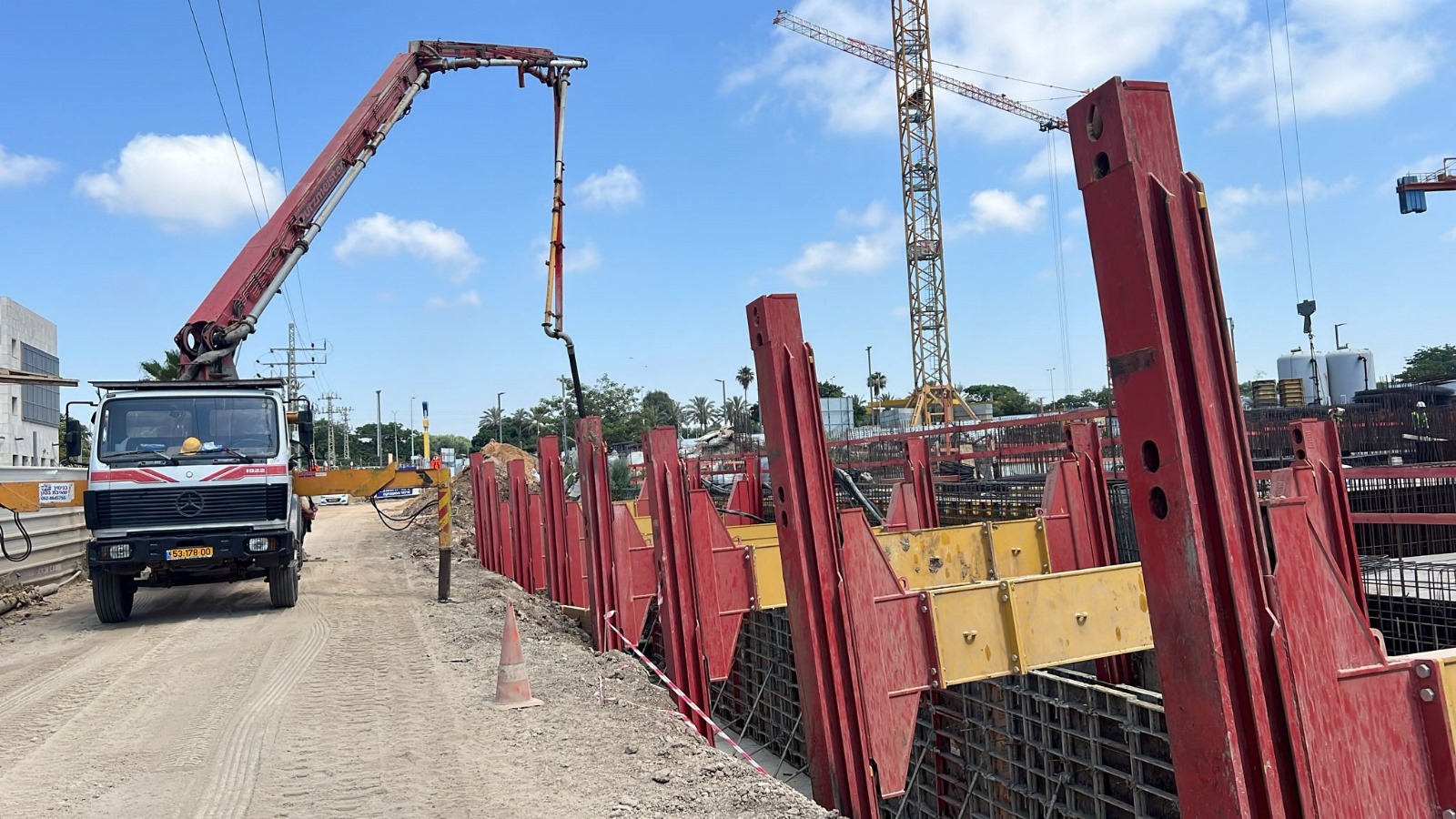

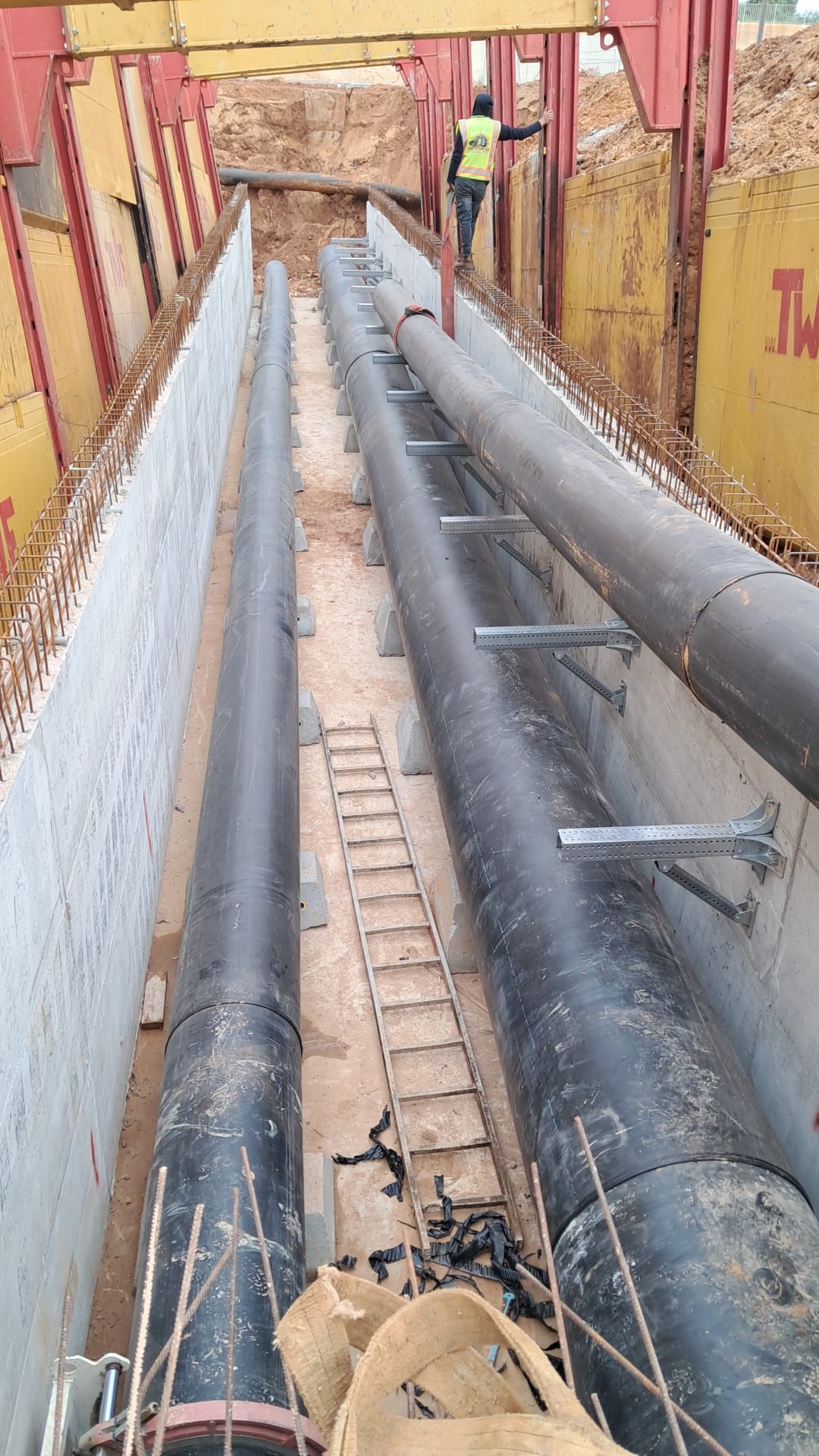

Trench Shoring Projects
Explore our completed excavation and shoring installations
